Reproducible Research: Using Emacs, Org-Mode, Git, and GitHub

Zheng Tian

Created: 2017-06-01 Thu 13:18

Introduction
Emacs
Org-Mode
Reproducible research with org-mode
Collaboration with Git and Github
Miscellaneous

Introduction

Have you ever experienced this?

Reproducible research

An article about computational science in a scientific publication is not the scholarship itself, it is merely advertising of the scholarship. The actual scholarship is the complete software development environment and the complete set of instructions which generated the figures.

– Buckheit and Donoho (1995)

How can we do reproducible research?

Emacs

What is Emacs? A text editor.

GNU Emacs is a free, portable, extensible text editor.

Free: Open source, freely copyable and redistributable.
Portable: Run on many machines under different operating systems.
Extensible: Customizable for all aspect and have many contributed packages.

Emacs is beyond a text editor

Emacs is a LaTeX editor via AucTex

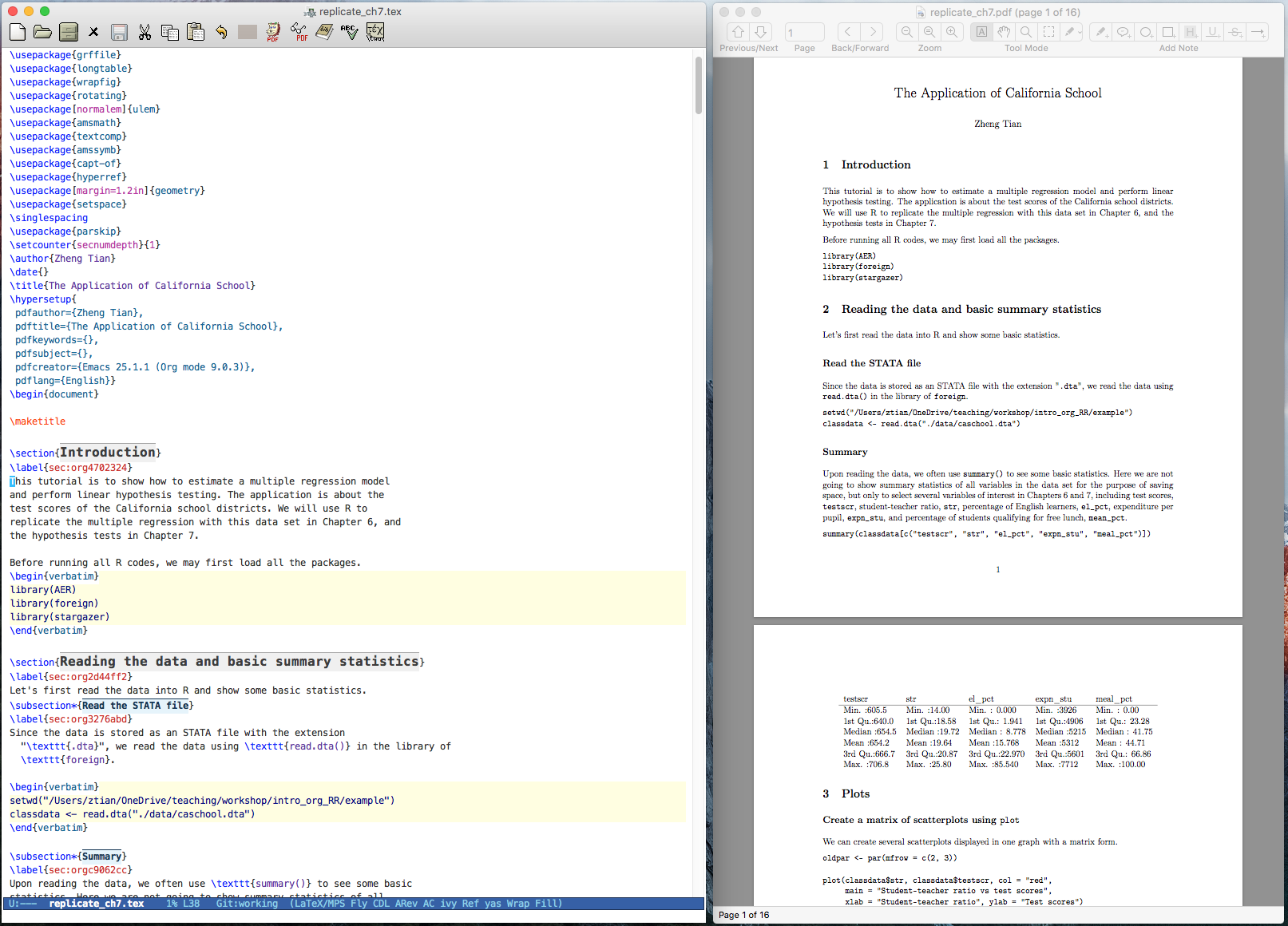

Figure 3: An illustration of the AucTex mode

Emacs is IDE for programming languages

Edit code with syntax highlighting
Execute code within Emacs

Figure 4: An illustration of the ESS mode

Emacs is an operating system

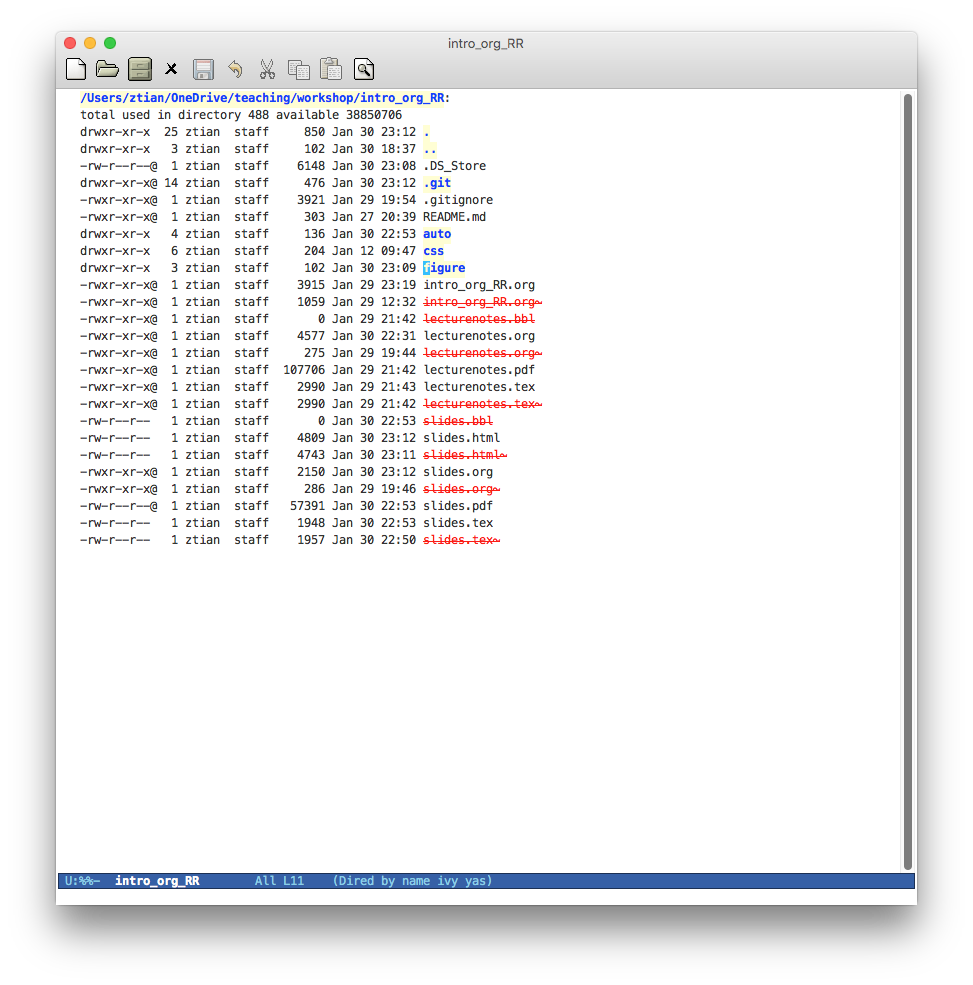

Figure 5: Emacs as an operating system with the dired mode

Emacs is a Git tool via Magit

Figure 6: An illustration of the Magit mode

Emacs can do many other things

Emacs can do spell checking, reading news, checking and sending emails, etc., through plenty of contributed packages.
Most importantly, Emacs enable researchers to manage research project, take notes, and write dynamic documentation.

Installation and Configuration

Installation

Homepage of GNU Emacs: https://www.gnu.org/software/emacs/
Vincent Goulet's binary files: http://vgoulet.act.ulaval.ca/en/emacs/

Configuration

Emacs is customizable and all customized configuration can be done with either a .emacs file or init.el under the directory ~/.emacs.d.

With some settings, we can use an org file to organize and apply your customization.

My settings

All my settings have been uploaded to Github from where you can download or

git clone https://github.com/zngtian/.emacs.d.git

A sneak peek of my settings

init.el
https://github.com/zngtian/.emacs.d/blob/master/init.el

myconfig.org
https://github.com/zngtian/.emacs.d/blob/master/myconfig.org
- Open the files in new tabs.
- Tell them to change the paths and files names in myconfig.org.

Basic usage of Emacs

Notation

In Emacs documentation, we often see the following notations

C-x: Press Control key and x
M-x: Press Alt key and x
RET: Press the return key
SPC: Press the space bar
ESC: Press the escape key
S-<TAB>: Press shift and tab keys

Buffer and windows

The basic user interface of Emacs uses buffers and windows.

Figure 7: An example of Emacs buffers and windows

Motion within a buffer

C-f and M-f: move forward by one character and by one word
C-b and M-b: move backward by one letter and by one word
C-n and C-p: move downward and upward
C-v and M-v: scroll down and up
M-< and M->: move to the start and to the end of a buffer

Switch buffers and windows

C-x 2: open a new buffer
C-x 0: close the current buffer
C-x b: switch to a buffer
C-x o: switch between two opened buffers
C-x 4 b: switch to a buffer and open it as a new one
C-x 5 2 and C-x 5-0: open and close a new window

Open, save, quit, and help

C-x C-f: open a new file
C-x C-s: save the current buffer
C-x s: save all files
C-g: cancel the currently invoked command. VERY IMPORTANT!
C-x C-c: exit Emacs
C-h ?/m/a: get help

Copy, yank, and delete

C-SPC: set a mark and move the cursor around to select a region
C-w: kill (cut)
M-w: copy
C-y: yank (paste)
DEL and C-d: delete a character backward and forward
M-DEL and M-d: delete a word backward and forward
C-k: kill a line.
C-x u: undo the previous editing.

Tutorial and cheat sheet

C-h t: open the complete tutorial
A guided tour: https://www.gnu.org/software/emacs/tour/
Cheat sheet: https://www.gnu.org/software/emacs/refcards/pdf/refcard.pdf

Org-Mode

What is org-mode

Org mode is one of the most popular contributed packages in Emacs. It can accomplish a variety of work including, but not limited to,

taking notes with structured documents,
assigning tasks and scheduling them,
editing tables and doing calculation,
exporting to pdf, html, odt files,
working with source code.

Structured document

Headline

* Top level headline
** Second level
*** 3rd level
    some text
*** 3rd level
    more text

* Another top level headline

<TAB>: hit at a headline to see and hide the content under it
S-<TAB>: global cycling.
M-left and M-right: promote and demote a heading

Lists

- Unordered list
  + Item 1
  + Item 2
- Ordered list
  1. first thing
  2. second thing
  3. third thing
- Description
  - Tom :: a cat
  - Jerry :: a mouse
- List with check box [1/2]
  - [X] Do this
  - [ ] Do that

Special elements

Blocks

Blocks are defined by #+BEGIN_... and #+END_...

The CENTER block

This sentence will be centered in the exported file

#+BEGIN_CENTER
This sentence will be centered in the exported file
#+END_CENTER

The QUOTE block

Everything should be made as simple as possible, but not any simpler – Albert Einstein

#+BEGIN_QUOTE
 Everything should be made as simple as possible,
 but not any simpler -- Albert Einstein
 #+END_QUOTE

Mathematics

Org mode can contain LaTeX math fragments that don't need any special marking. Just do as in LaTeX.

\begin{equation}
    x=\sqrt{b}
\end{equation}

If $a^2=b$ and \( b=2 \), then the solution must be
either $$ a=+\sqrt{2} \text{ or }  a=-\sqrt{2} $$

\begin{equation} x=\sqrt{b} \end{equation}

If \(a^2=b\) and \( b=2 \), then the solution must be either \[ a=+\sqrt{2} \text{ or } a=-\sqrt{2} \]

Table

‘|’ as the first non-whitespace character starts a table. The following texts yield a table in HTML export
```
| Name  | Age | Score |
|-------+-----+-------|
| Peter |  17 |  1234 |
| Anna  |  25 |  4321 |
```
Name Age Score

Peter 17 1234

Anna 25 4321

Calculation in a table

We can define formula for a field, a row, or a column by starting a field with "" or ":".

| Name  | Age | Score |
|-------+-----+-------|
| Peter |  17 |  1234 |
| Anna  |  25 |  4321 |
|       |  21 |  5555 |
#+TBLFM: @4$2=vmean(@2..@3)::@4$3=vsum(@2..@3)

Name	Age	Score
Peter	17	1234
Anna	25	4321
	21	5555

Exporting

An org file can be exported to a variety of formats, including latex, beamer, html, odt, etc.
C-c C-e: start the export dispatcher.
- l o: export to pdf and open it.
- h o: export to html and open it.
This presentation is exported with the og-reveal package.
Export settings can be set using some keywords, such as #+TITLE, #+AUTHOR, #+OPTIONS, #+LATEX_HEADER, #+HTML_HEADER, etc.

Tasks and agenda view

A sneak peek of my agenda

The org mode is a handy tool to plan daily life and manage research projects.

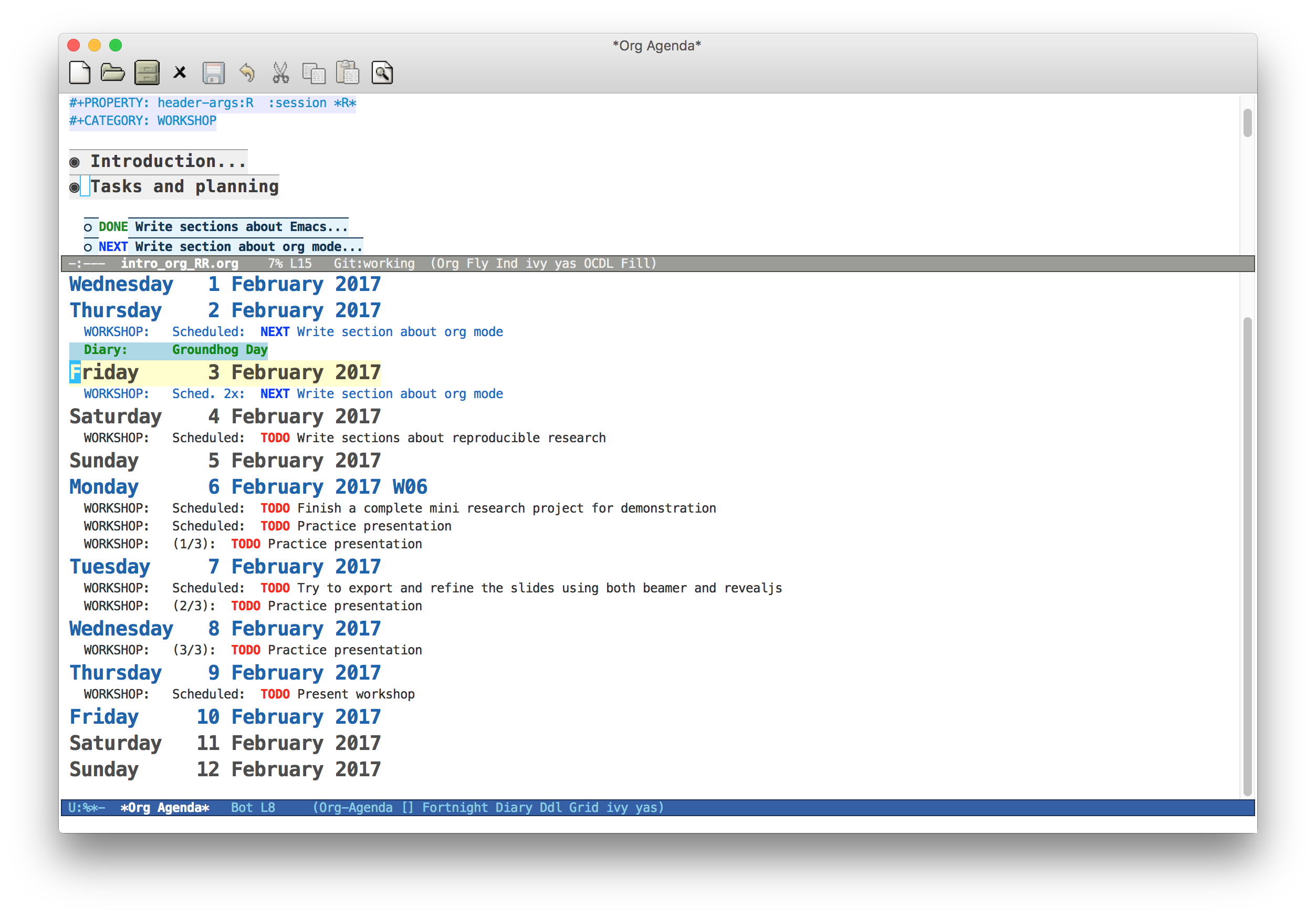

Figure 8: An illustration of agenda view

To-do items

TODO items in org mode are headlines defined by TODO keywords after asterisks.

* [#A] TODO Do this first.
* DONE This task has been done

M-S RET: quick enter a TODO item
S-right/left: cycle through TODO status
S-up/down: cycle through priorities.

Schedule and deadline

We can set schedule and deadline to TODO items.

C-c C-s: set a day and time to begin doing this item
C-c C-d: set a deadline

* [#A] TODO Do this first.
  SCHEDULED: <2017-02-03 Fri>

* DONE This task has been done
  DEADLINE: <2017-02-03 Fri>

Time stamps are generated using the calendar minor mode.

Agenda view

All TODO items, schedules, and deadlines can be viewed in the Agenda view in org mode.

C-c a a: start the agenda view
C-c a t: see all TODO items
C-c a m: filter TODO items by tags

Within the agenda view, you can filter by tag, change the status, and go to the headline of a TODO item.

Org-ref

Org-ref is a package developed by John Kitchin for reference management.

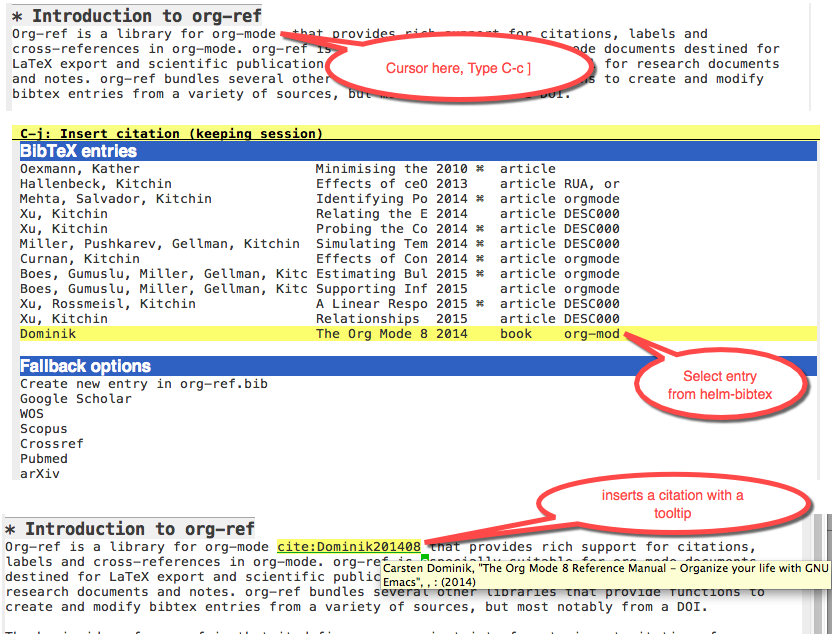

Figure 9: A glimpse of org-ref

Reproducible research with org-mode

Reproducible research: basics

What is reproducible research?

The data and code used to make a finding are available and they are sufficient for an independent researcher to recreate the finding. – Gandrud (2015)

Why should we do reproducible research?

For readers
- Easy for reviewers to test and validate your findings.
- Easy for readers to reuse your code in their research.
- Make your paper a reliable citation.
For ourselves
- Easy for us to tract and retrospect what we have done.
- Helpful to have good research habits and workflow.
- Facilitating team work.

What is a workflow of reproducible research?

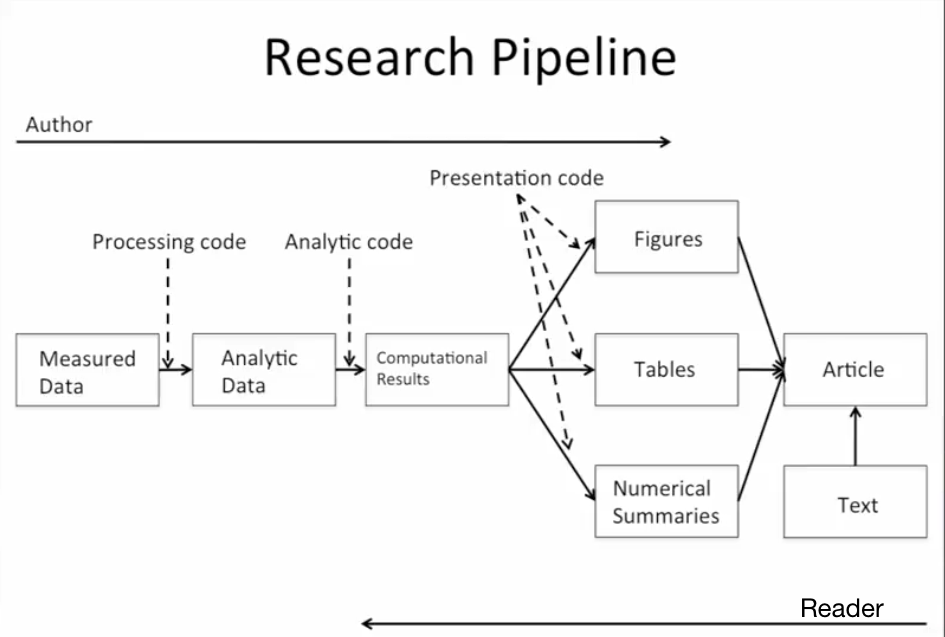

Figure 10: A workflow of reproducible research (Source: Peng, 2015)

What are necessary elements of reproducible research?

Roger Peng (2015) summarizes four essential elements to make results reproducible:

Analytical data
Analytical code
Documentation
Distribution

Literate programming

What is literate programming?

Literate programming (Donald Knuth, 1992) is the central part of reproducible research.

Typically, literate programming involves the following three steps (Xie, 2015):

parse the source document and separate the code from narratives;
execute the source code and return results;
mix results from the source code with the original narratives.

Available tools for literate programming

WEB (Knuth, 1983)
Noweb (Ramsey, 1994)
roxygen2 (Wickham et al., 2015)
knitr (Xie, 2015b)
Jupyter(IPython) Notebook
Emacs org mode

Literate programming with Org-mode

Source code blocks

The basic structure of code blocks is as follows

#+NAME: <name>
#+BEGIN_SRC <language> <switches> <header arguments>
   <body>
#+END_SRC

The structure of an inline code block is

src_<language>[<header arguments>]{<body>}

Basic settings

#+BEGIN_SRC emacs-lisp :eval no
  (org-babel-do-load-languages
   'org-babel-load-languages
     '((R . t)
       (python . t)
       (emacs-lisp . t)
       (calc . t)
       (latex . t)
       (org . t)
       (sh . t)))

    (setq org-confirm-babel-evaluate nil)
#+END_SRC

Header arguments

Header arguments fine-tune the behaviors of source code blocks.

Header arguments	Example
:exports	:exports results or :exports none
:results	:results value table or :results silent
:eval	:eval no
:cache	:cache yes
:file	:file ./img/figure1.png

Results in raw format

#+BEGIN_SRC R :exports both :results output
library(ggplot2)
head(mpg[1:5])
#+END_SRC

#+RESULTS:
:   manufacturer model displ year cyl
: 1         audi    a4   1.8 1999   4
: 2         audi    a4   1.8 1999   4
: 3         audi    a4   2.0 2008   4
: 4         audi    a4   2.0 2008   4
: 5         audi    a4   2.8 1999   6
: 6         audi    a4   2.8 1999   6

Results in org tables

#+BEGIN_SRC R :exports results :results value table :colnames yes :cache yes
head(mpg[1:5])
#+END_SRC

#+RESULTS[f45a5d1174dd12cdb343701a0868203eda23a5bc]:
| manufacturer | model | displ | year | cyl |
|--------------+-------+-------+------+-----|
| audi         | a4    |   1.8 | 1999 |   4 |
| audi         | a4    |   1.8 | 1999 |   4 |
| audi         | a4    |     2 | 2008 |   4 |
| audi         | a4    |     2 | 2008 |   4 |
| audi         | a4    |   2.8 | 1999 |   6 |
| audi         | a4    |   2.8 | 1999 |   6 |

Results in figures

#+BEGIN_SRC R :exports both :results output graphics :file mpg.png
  ggplot(mpg, aes(displ, cty, colour = class)) +
      geom_point()
#+END_SRC

#+ATTR_HTML: :width 600 :height 500
#+ATTR_LATEX: :width 0.6\textwidth :height 0.6\textheight
#+RESULTS:
[[file:figure/mpg.png]]

The figure generated

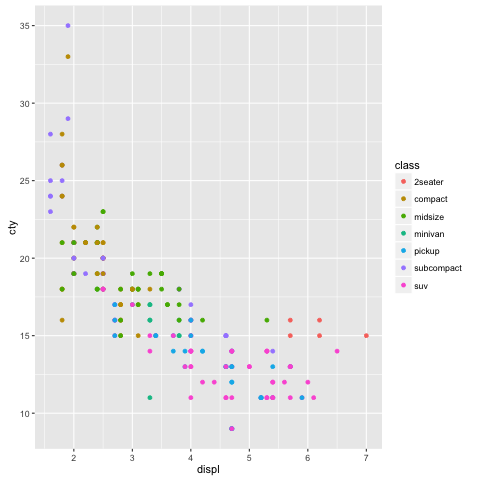

Figure 11: The Scatterplot Between the Engine Displacement and City MPG

Results in latex

#+BEGIN_SRC R :exports both :results output latex
library(stargazer)
stargazer(mpg, header = FALSE)
#+END_SRC

#+RESULTS:
#+BEGIN_EXPORT latex

% Table created by stargazer v.5.2 by Marek Hlavac, Harvard University. E-mail: hlavac at fas.harvard.edu
% Date and time: Mon, Feb 06, 2017 - 09:45:31
\begin{table}[!htbp] \centering
  \caption{}
  \label{}
\begin{tabular}{@{\extracolsep{5pt}}lccccc}
\\[-1.8ex]\hline
\hline \\[-1.8ex]
Statistic & \multicolumn{1}{c}{N} & \multicolumn{1}{c}{Mean} & \multicolumn{1}{c}{St. Dev.} & \multicolumn{1}{c}{Min} & \multicolumn{1}{c}{Max} \\
\hline \\[-1.8ex]
displ & 234 & 3.472 & 1.292 & 1.600 & 7.000 \\
year & 234 & 2,003.500 & 4.510 & 1,999 & 2,008 \\
cyl & 234 & 5.889 & 1.612 & 4 & 8 \\
cty & 234 & 16.859 & 4.256 & 9 & 35 \\
hwy & 234 & 23.440 & 5.955 & 12 & 44 \\
\hline \\[-1.8ex]
\end{tabular}
\end{table}
#+END_EXPORT

The LaTeX table generated

An mini example of literate programming

The following file is an example of reproducible research, which I used in teaching Econometrics.

example/replicate_ch7.html

Collaboration with Git and Github

What is Git?

Git is a version control system (VCS) that records changes to a file or set of files over time so that you can recall specific versions later.
Using Git to manage versions means that if you screw things up or lose files, you can easily recover.

How does Git work?

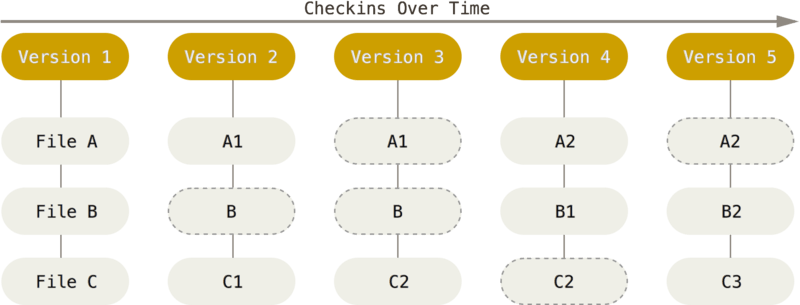

Figure 12: Storing data as snapshots of the project over time

The basic workflow of Git goes like this

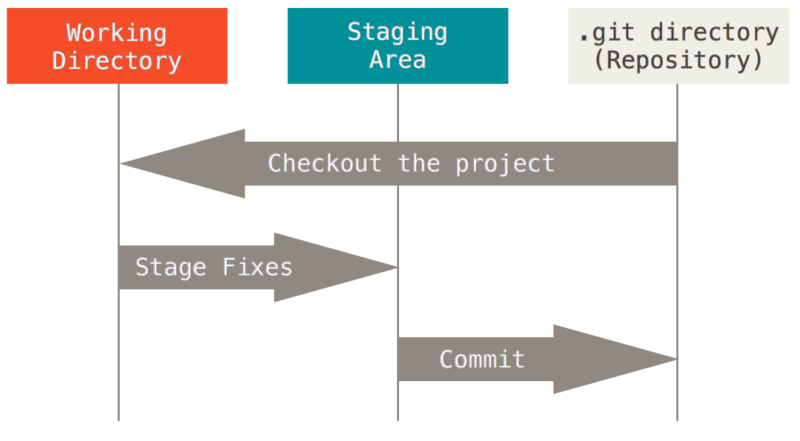

Figure 13: Working tree, staging area, and Git directory

A life cycle of a file

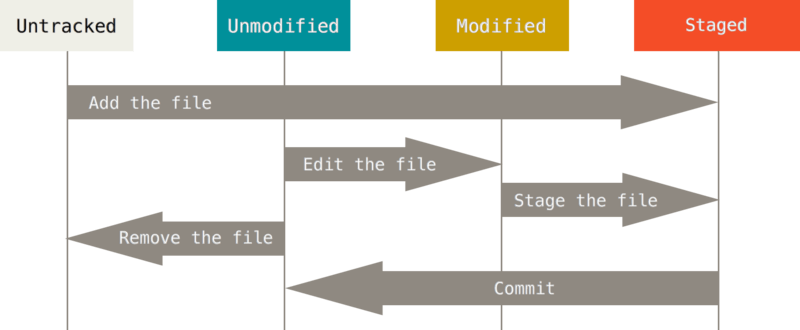

Figure 14: A life cycle of a file under git

Basic Git commands

git init: create a git repository
git add: stage changes made to files
git commit: commit changes
git status: check the status
git log: check history

Working with branches

Branches in a nutshell

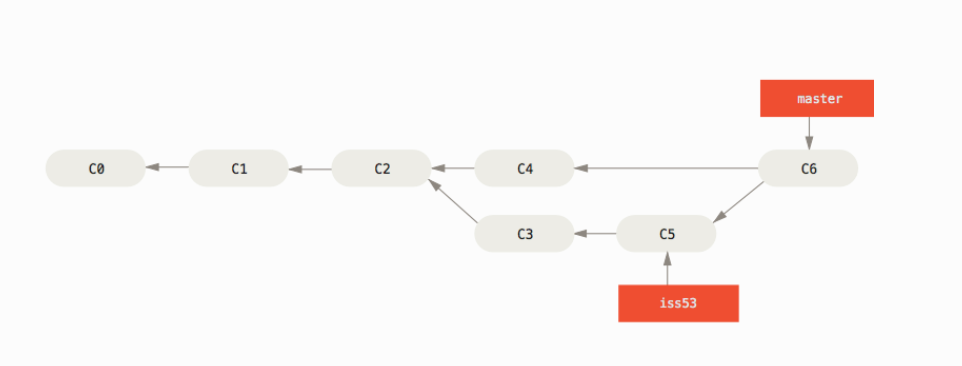

Figure 15: Git branches in a nutshell

Branch command

git branch: create a branch
git checkout: checkout to a branch
git merge: merge a branch

Remote repository and Github

Git remote repositories make possible collaboration in a distributed way.
GitHub provides remote repository hosting service, but it adds many of its own features.
Visit https://github.com/ and sign up a free account right now!

Set up a Github repository

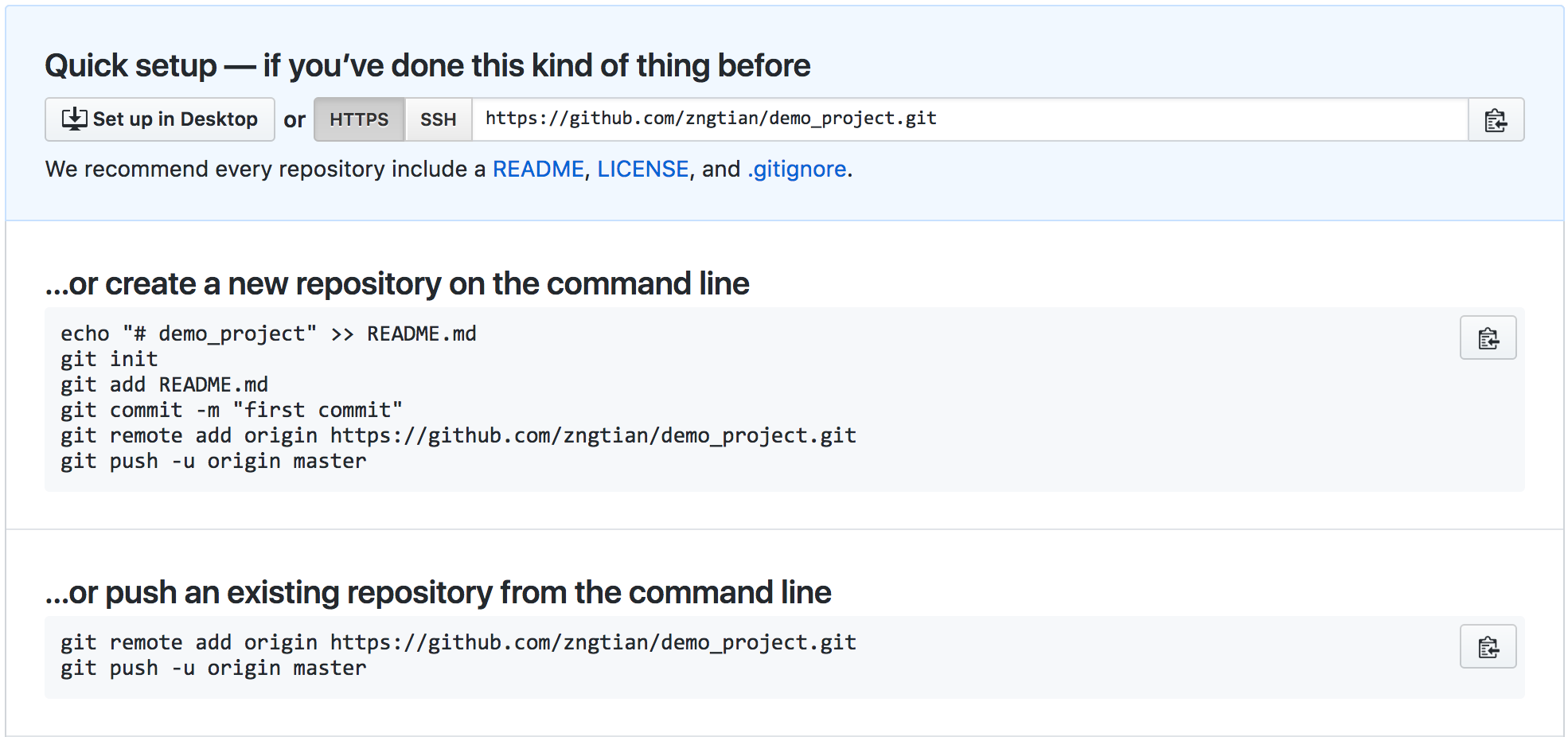

Figure 16: Initialize Github repository

Remote commands

git clone: download a remote repository
git remote add: add a remote repository
git pull: update local files with all changes in the remote
git push: upload local changes to the remote

Collaboration with Github

Fork and download

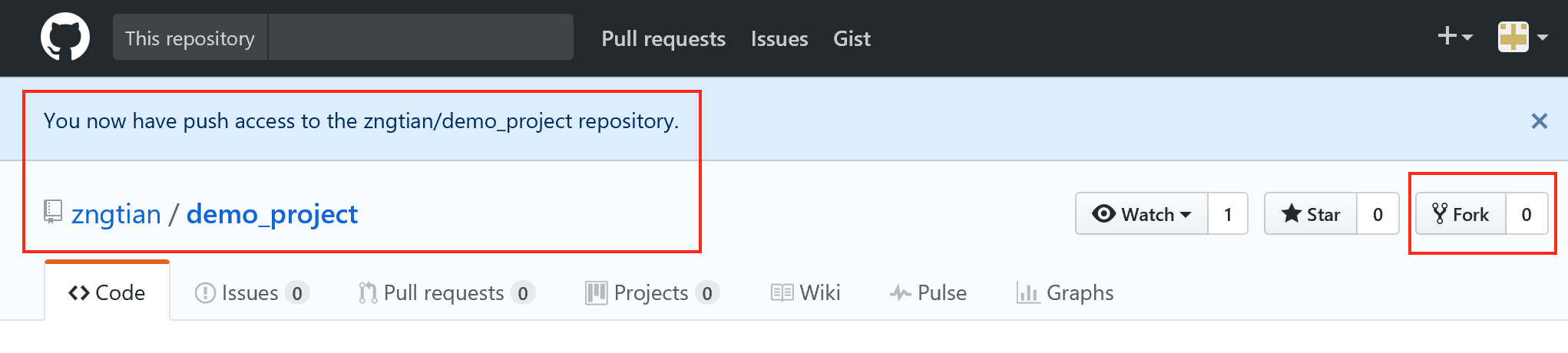

Figure 17: Fork a project

Make changes locally

$ git branch testing
$ git checkout testing
$ git commit -a -m "make some changes"
$ git push origin testing

Open pull request

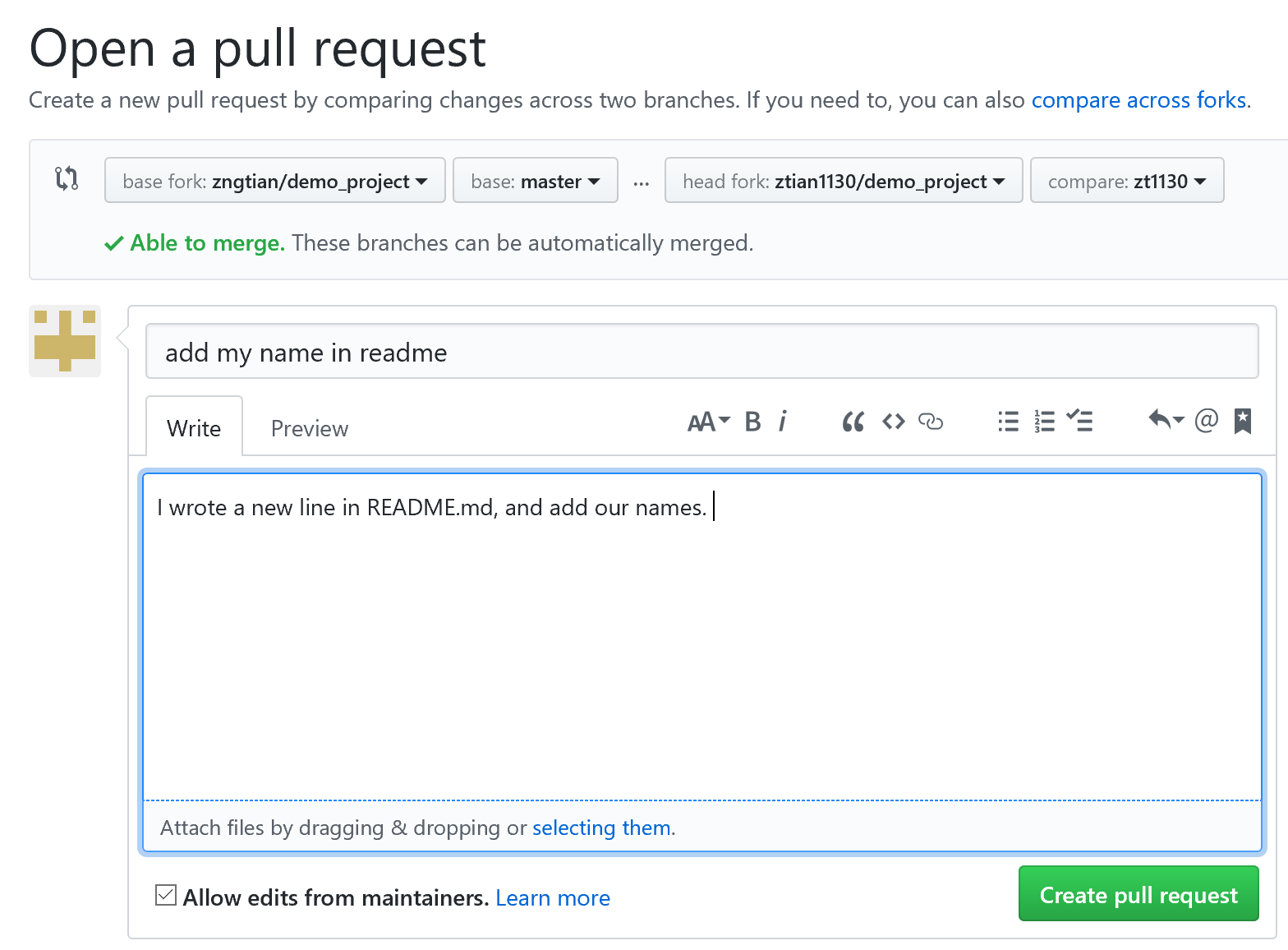

Figure 18: Open a pull request

Merge pull request

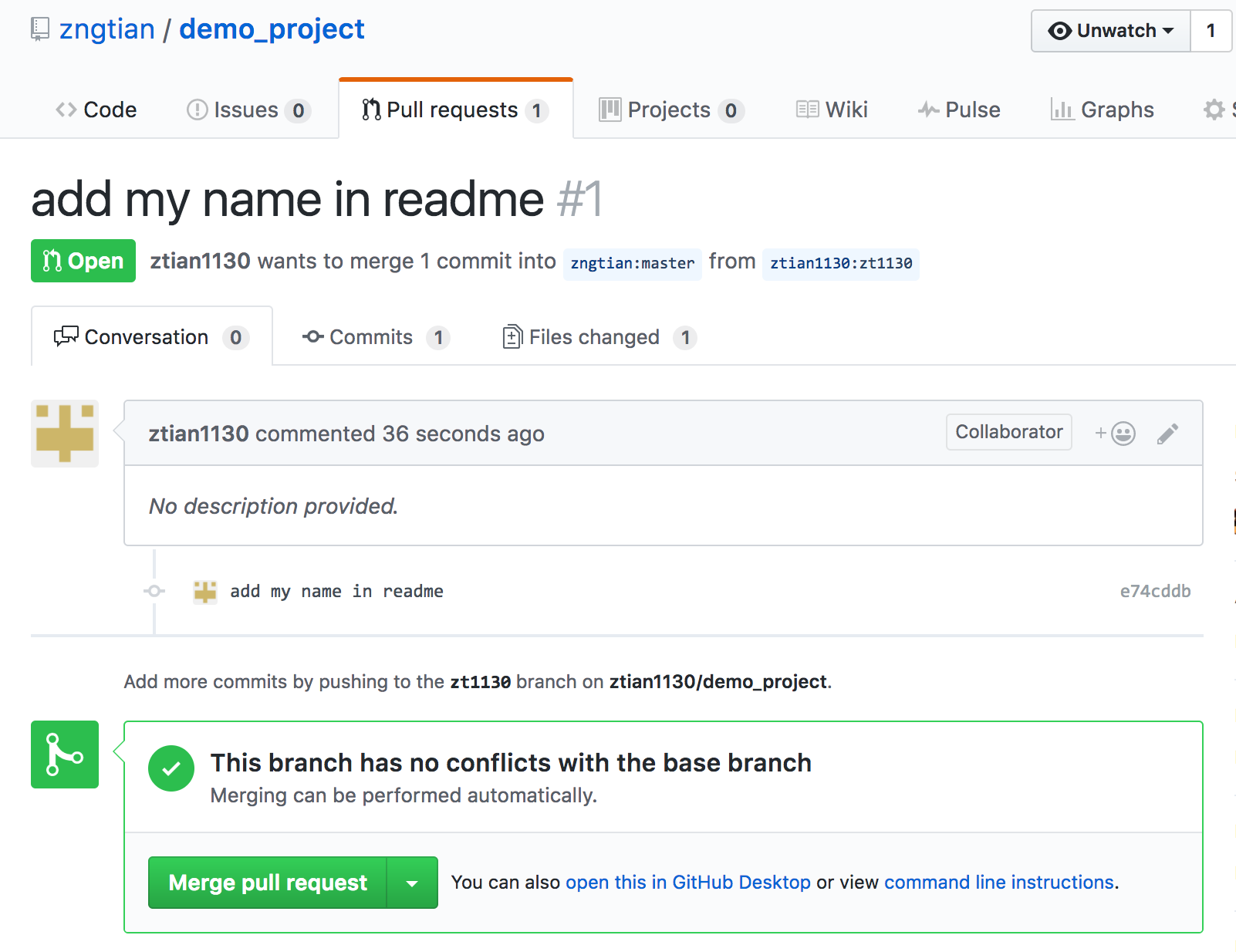

Figure 19: Merge pull request

Other functionalities of Github

Github page

Github classroom

Miscellaneous

Tutorial sources

John Kitchin's blog: http://kitchingroup.cheme.cmu.edu/blog/2014/08/08/What-we-are-using-org-mode-for/
John Kitchin's presentation on YouTube: https://www.youtube.com/watch?v=1-dUkyn_fZA&t=126s
Vikas Rawal's tutorial: https://github.com/vikasrawal/orgpaper/blob/master/orgpapers.org
The book Pro Git: Git is fully documented in this book, https://git-scm.com/book/en/v2.
Github tutorial: https://guides.github.com/activities/hello-world/

Version information

OS X El Capitan (Version 10.11.6)
GNU Emacs version 25.1.1
Org mode version 9.0.3
Ess mode version 16.10

Q & A

You can download my presentation at https://github.com/zngtian/intro_org_RR or

git clone https://github.com/zngtian/intro_org_RR.git

Any comments and questions are welcomed.

Thanks!
